High Quality Cat6 UTP RJ45 Plug

Short Description:

The Cat6 UTP RJ45 Plug is specifically engineered to support high-speed data transmission.    It is made from premium quality materials, ensuring durability and reliability.    The plug is compatible with Cat6 cables, which are widely recognized for their superior performance and ability to handle large volumes of data.    With this plug, you can enjoy a stable and uninterrupted connection, without compromising on speed or efficiency.





Product Detail

Product Tags

Products Specification

*UL 1863 No. 137614(DUXR2), complies with FCC part 68 subpart F standards.


Electrical Test

1..Dielectric Withstanding Voltage test 1000V/DC
  2. Insulation Resistance: >500MΩ
  3. Contact Resistance:<20MΩ

       Gold Plate Inspection

 (Per MIL-G-45204C)

1. TYPE II (99% pure gold minimum)
  2. Grade C+(KNOOP HARDNESS RANGE 130~250)
  3. Class 1(50 microinches minimum thickness)


1. Cable-to-plug tensile strength-20LBs(89N) min.
  2. Durability:2000 mating cycles.

Material & Finish

1. Housing Material: Polycarbonate(PC.)
    94V-2(For UL 1863 DUXR2)
  2. Contact blade: Phosphor Bronze
      a. High strength copper alloy [JIS C5191R-H(PBR-2)].
      b.100 microinches nickel under plated & Gold selected.
      Operating Temperature:-40 ℃~+125℃

Products Description

One of the standout features of our Cat6 UTP RJ45 Plug is its ease of installation. With its user-friendly design, even those with limited technical knowledge can effortlessly connect the plug to their network cable. This means that you can spend less time on installation and more time enjoying the benefits of a reliable and fast network connection.

Another advantage of our Cat6 UTP RJ45 Plug is its versatility. It is compatible with various devices, including computers, laptops, printers, routers, and switches. This means that you can use this plug in various settings, whether it be at home, in the office, or in a professional networking environment.

Overall, the Cat6 UTP RJ45 Plug is the perfect solution for anyone in need of a high-quality networking plug. Its exceptional performance, ease of installation, versatility, and compact design make it a must-have for individuals and professionals alike. Upgrade your network connectivity today with the Cat6 UTP RJ45 Plug and experience the difference it can make.

Details Images

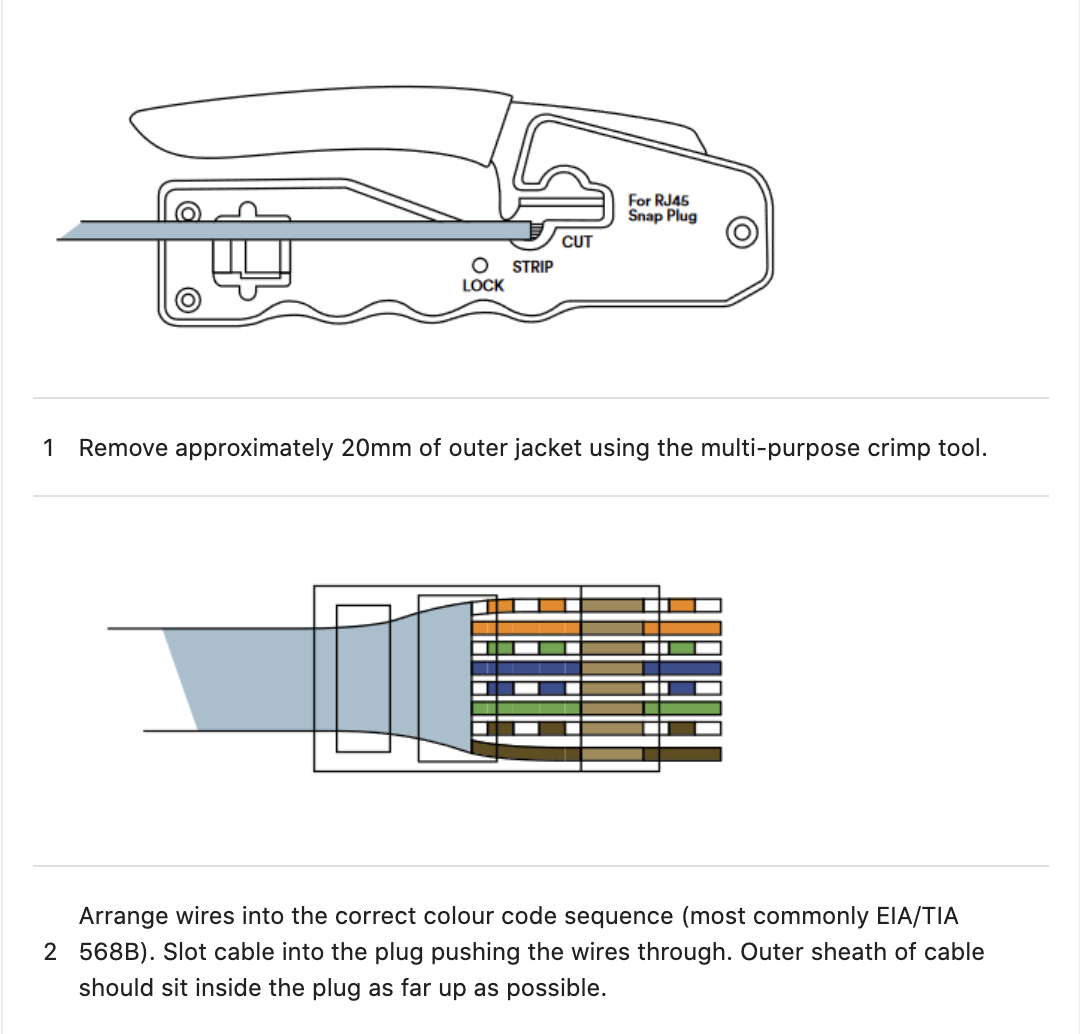

product_show (1)

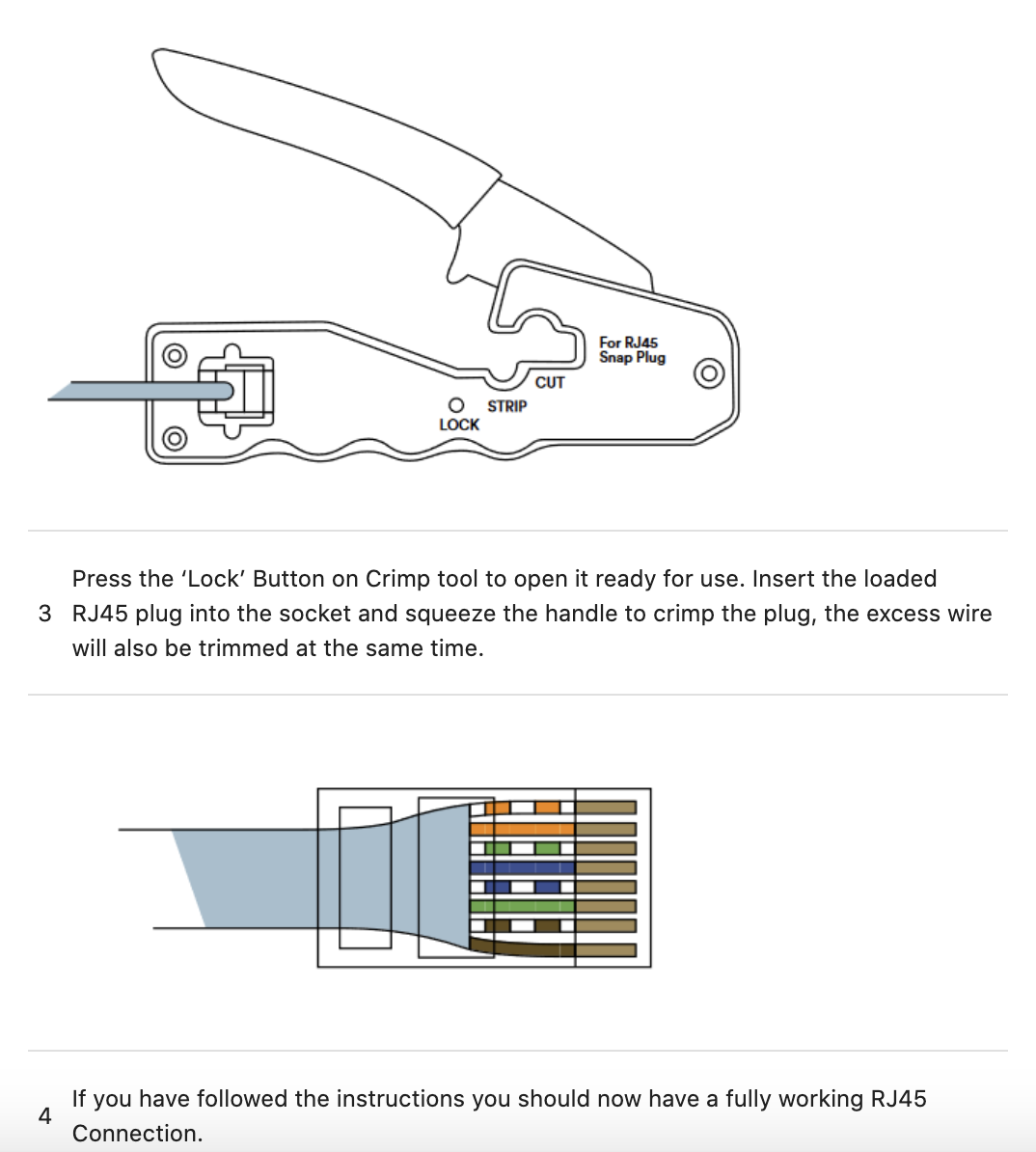

product_show (2)
ccs-cat5e-utp-rj45-plu (2)
Rj45 Faceplate (4)

Company Profile

EXC Cable & Wire was established in 2006. With headquarters in Hong Kong, a Sales team in Sydney, and a factory in Shenzhen, China. Lan cables, fiber optic cables, network accessories, network rack cabinets, and other products related to network cabling systems are among the products we manufacture. OEM/ODM products can be produced according to your specifications as we are an experienced OEM/ODM producer. North America, the Middle East, Europe, and South East Asia are some of our major markets.
