High Quality Cat5e FTP RJ45 Plug

Short Description:

These Cat5e FTP shielded Rj45 plugs are suitable for terminations on both Stranded Patch and Solid core shielded Cat5e Cable. They are of single piece construction.





Product Detail

Product Tags

Product Description

The Cat5e FTP RJ45 plug is a network connector used to connect the Cat5e shielded network cable to network devices. It complies with ISO/IEC 11801 and ANSI/TIA-568-C.2 standards and can transmit digital and analog voice, video and data signals. The plug adopts RJ45 interface, is compatible with network socket, has high anti-interference ability and good electrical performance. In addition, the plugs are color-coded for easy identification of different wire sequences.

The Cat5e FTP RJ45 plug is suitable for transmitting high-speed network signals such as 1000Mbps or faster. It can be used in a variety of network environments, including data centers, network rooms, industrial automation, etc.

Product Parameter

*UL 1863 No. 137614(DUXR2), complies with FCC part 68 subpart F standards.


Electrical Test

1..Dielectric Withstanding Voltage test 1000V/DC
  2. Insulation Resistance: >500MΩ
  3. Contact Resistance:<20MΩ

       Gold Plate Inspection

 (Per MIL-G-45204C)

1. TYPE II (99% pure gold minimum)
  2. Grade C+(KNOOP HARDNESS RANGE 130~250)
  3. Class 1(50 microinches minimum thickness)


1. Cable-to-plug tensile strength-20LBs(89N) min.
  2. Durability:2000 mating cycles.

Material & Finish

1. Housing Material: Polycarbonate(PC.)
    94V-2(For UL 1863 DUXR2)
  2. Contact blade: Phosphor Bronze
      a. High strength copper alloy [JIS C5191R-H(PBR-2)].
      b.100 microinches nickel under plated & Gold selected.
      Operating Temperature:-40 ℃~+125℃

Details Images

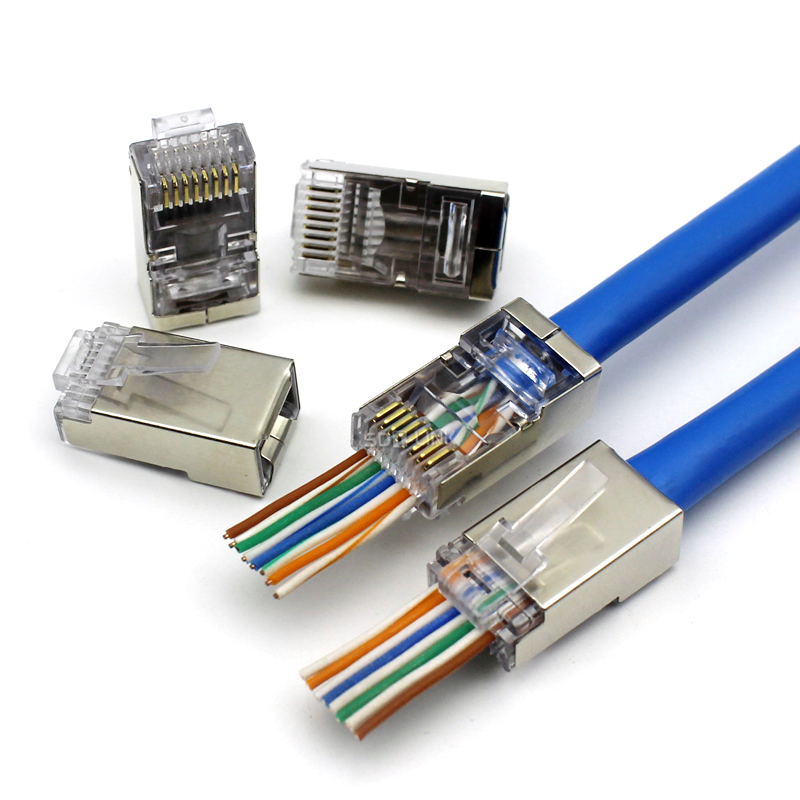

High speed stabilization Cat6 FTP RJ45 Plug (1)

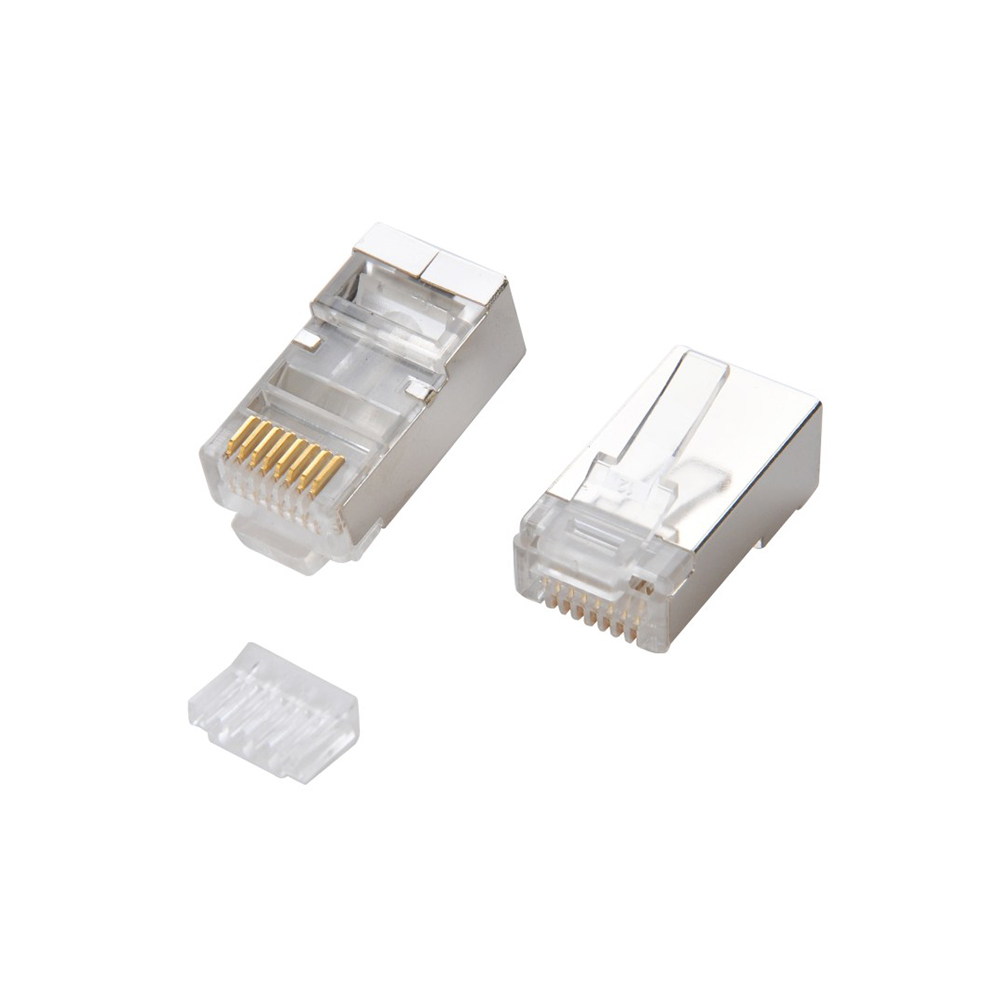

High speed stabilization Cat6 FTP RJ45 Plug (2)
High speed stabilization Cat6 FTP RJ45 Plug (2)
High speed stabilization Cat6 FTP RJ45 Plug (3)
High speed stabilization Cat6 FTP RJ45 Plug (1)
Rj45 Faceplate (4)
