High Speed SFTP Cat7 Patch Cable

Short Description:

The Cat7 standard can support data transmission rates of 10Gbps with a bandwidth of 600MHz, which is faster than Cat 5 and Cat 6, and the cable is usually double-shielded twisted pair, which can provide better signal transmission performance and anti-interference ability.






Product Detail

Product Tags

Product Parameter

Item Value
Brand Name EXC(Welcome OEM)
Type SFTP Cat7
Place of Origin Guangdong China
Numeber of Conductors 8
Color Custom Color
Certification CE/ROHS/ISO9001
Jacket PVC/PE
Length 0.5/1/2/3/5/10/30/50m
Conductor Cu/Bc/Cca/Ccam/Ccc/Ccs
Package Box
Shield SFTP
Conductor Diameter 0.58-0.7mm
Operating Temperature -20°C-75°C



Product Description

Exceed ANSI/TIA-568-D.2 Category 7 and ISO 11801 Class E Standards
Up to 600MHz with 10G-T Speed, Support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt)

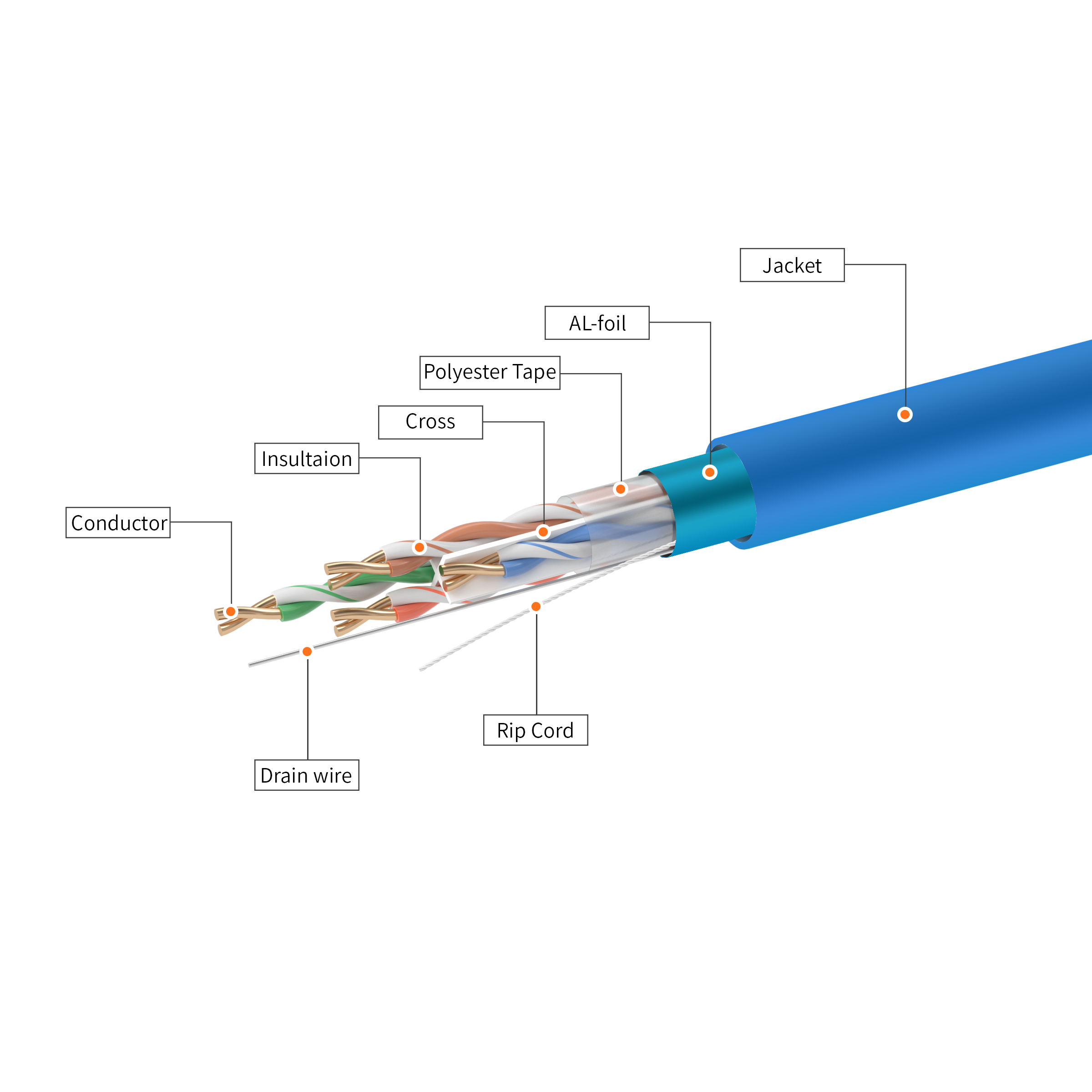

SFTP Cable Minimizes EMI and RFI Interference
Performance Tested with Fluke and Wired T568B
Strain Relief and a Flexible Boot Simplify Moves, Additions and Changes
Stranded Cable and RJ45 Modular Plugs with 50μ'' Gold-plated Contacts
Use in Demanding, Highbandwidth Environments

Cat7 network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 600MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories.
The FS cat7 patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CM, which is durable, flame-retardant, resistant to bending.

Details Images

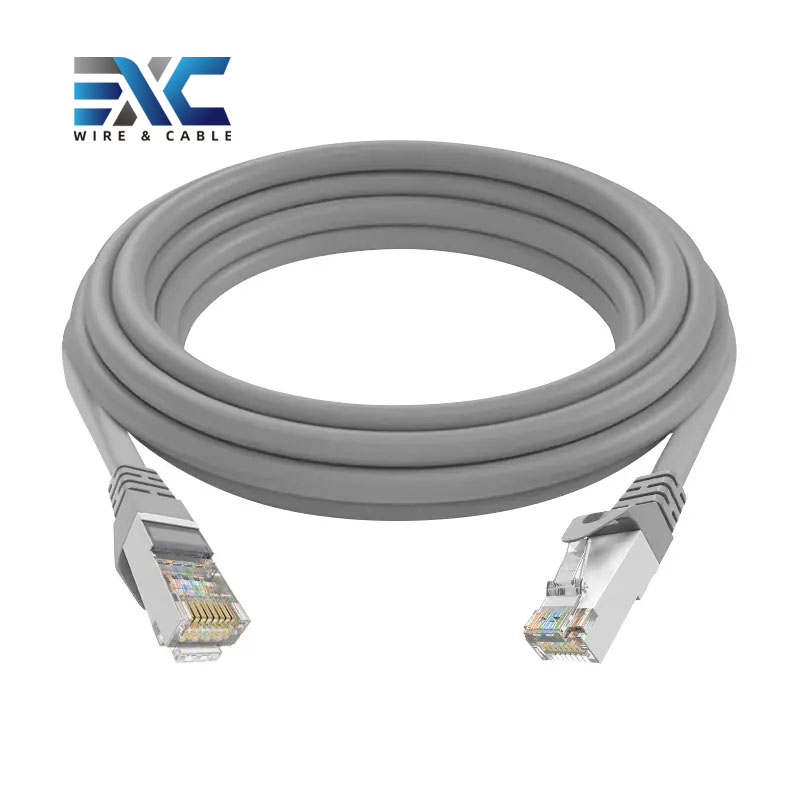

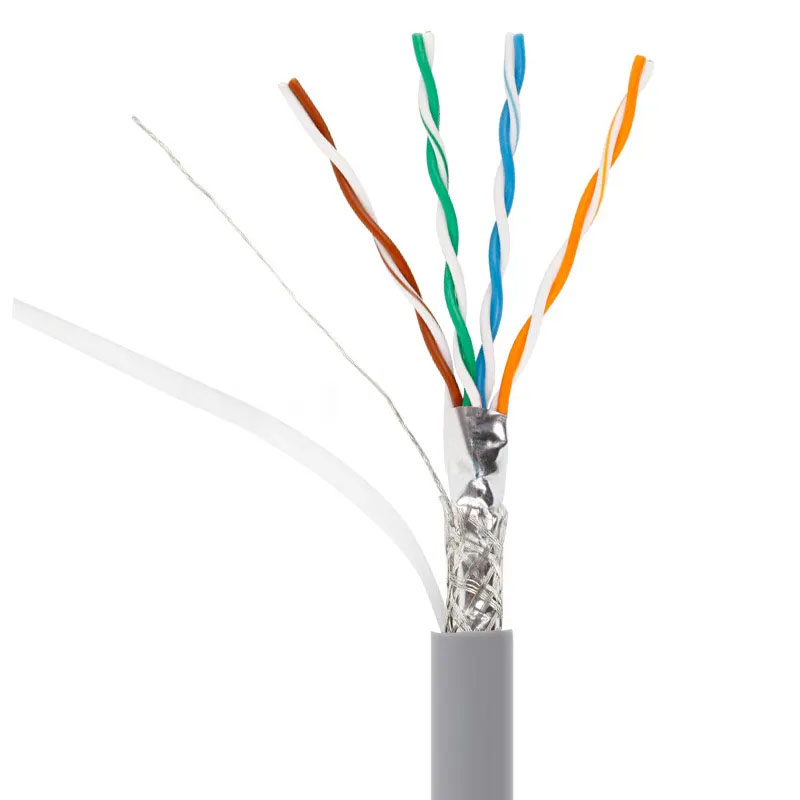

High speed and stable transmission Cat7 SFTP Patch cable (2)
High quality Outdoor Optical Fiber Cable  (4)

Company Profile

EXC Cable & Wire was established in 2006. With headquarters in Hong Kong, a Sales team in Sydney, and a factory in Shenzhen, China. Lan cables, fiber optic cables, network accessories, network rack cabinets, and other products related to network cabling systems are among the products we manufacture. OEM/ODM products can be produced according to your specifications as we are an experienced OEM/ODM producer. North America, the Middle East, Europe, and South East Asia are some of our major markets.
