Computer Room Wall Mount Cabinet

Short Description:

The compact design of the Wall Mounting Cabinets make them ideal for smaller networks and workgroups.

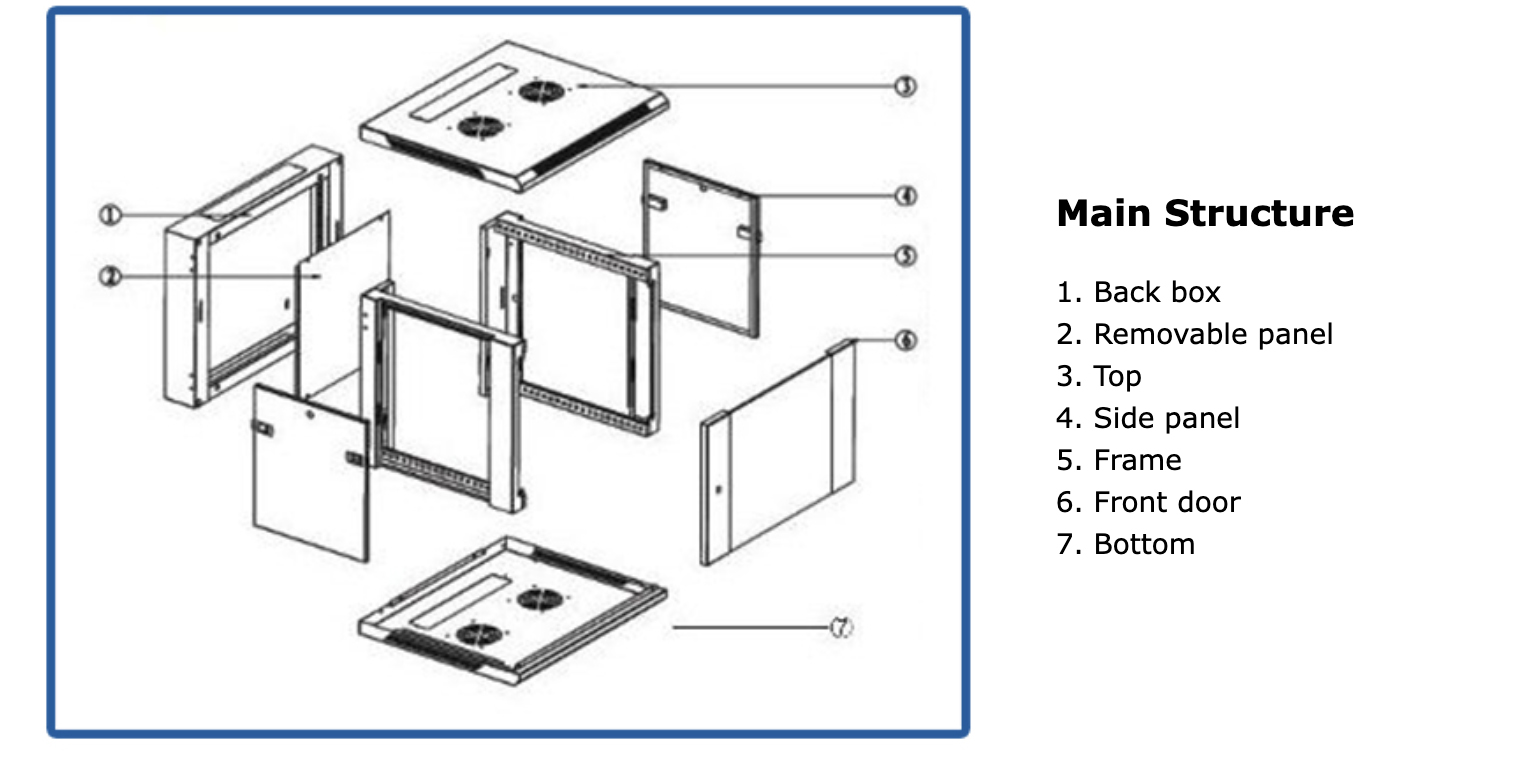

The cabinets are available in various sizes and are supplied fully assembled.   Each cabinet comprises a welded steel frame and adjustable front and rear mounting profiles.

A gland plate is situated in the top and bottom of the cabinet.   The cabinets feature ventilation slots top and bottom;   and have a lockable glass front door, and removable sides.   The cabinet frameworks are finished in a high quality attractive black.





Product Detail

Product Tags

Product Parameter

U Height Size (mm) Net Weight
6U 550W × 550D x 325H 15 Kg
9U 550W × 550D x 455H 18 kg
12U 550W × 550D x 590H 21 Kg
15U 550W × 550D x 720H 24 Kg
18U 550W × 550D x 855H 28 Kg
21U  550W × 550D x 990H 31 Kg

Maximum Internal Depth is 440mm

Details Images

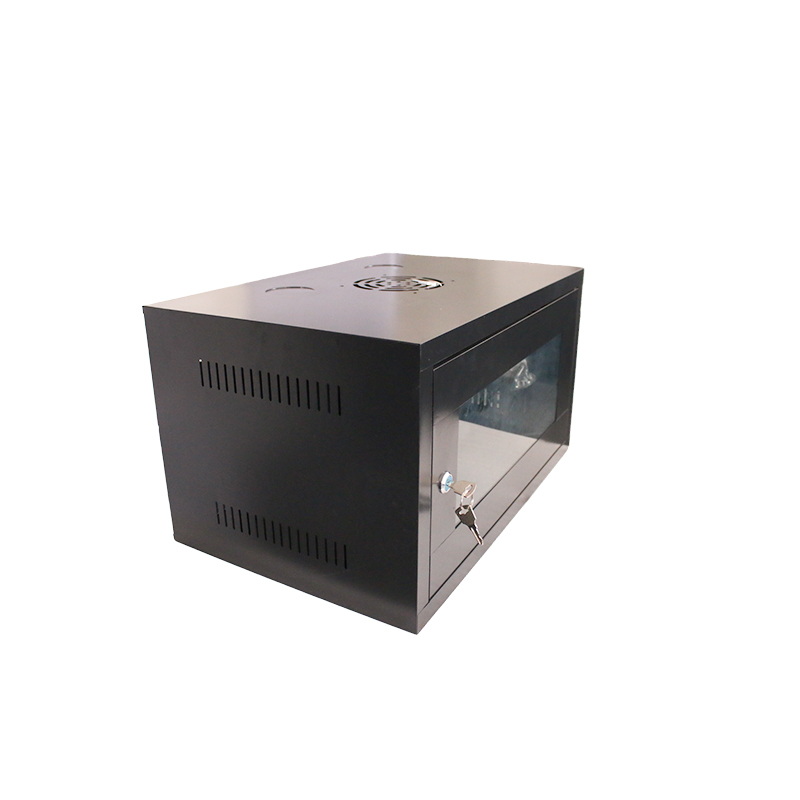

Wall Mount Cabinets (1)

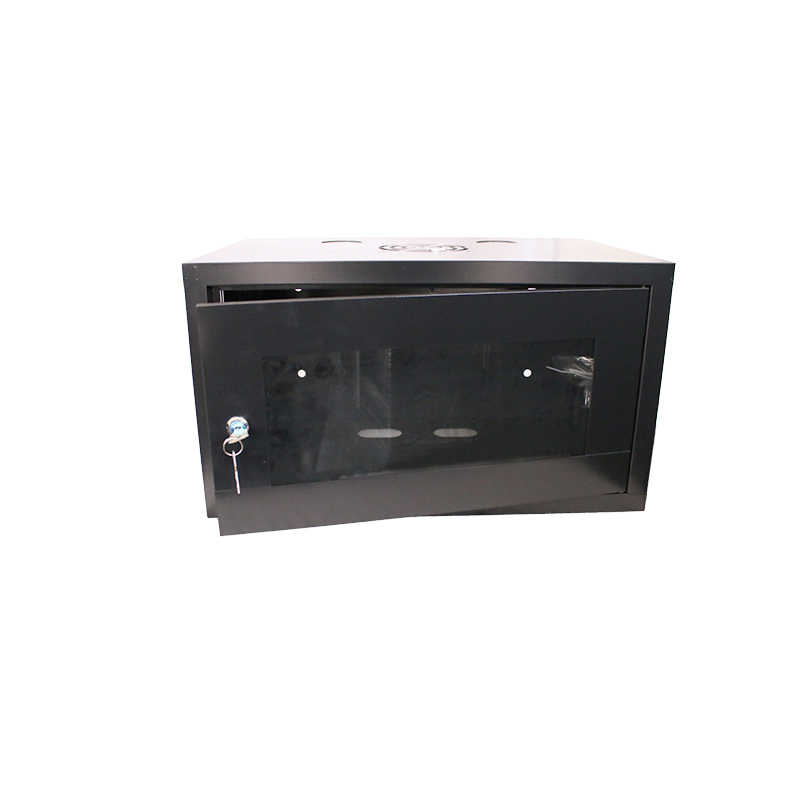

Wall Mount Cabinets (2)

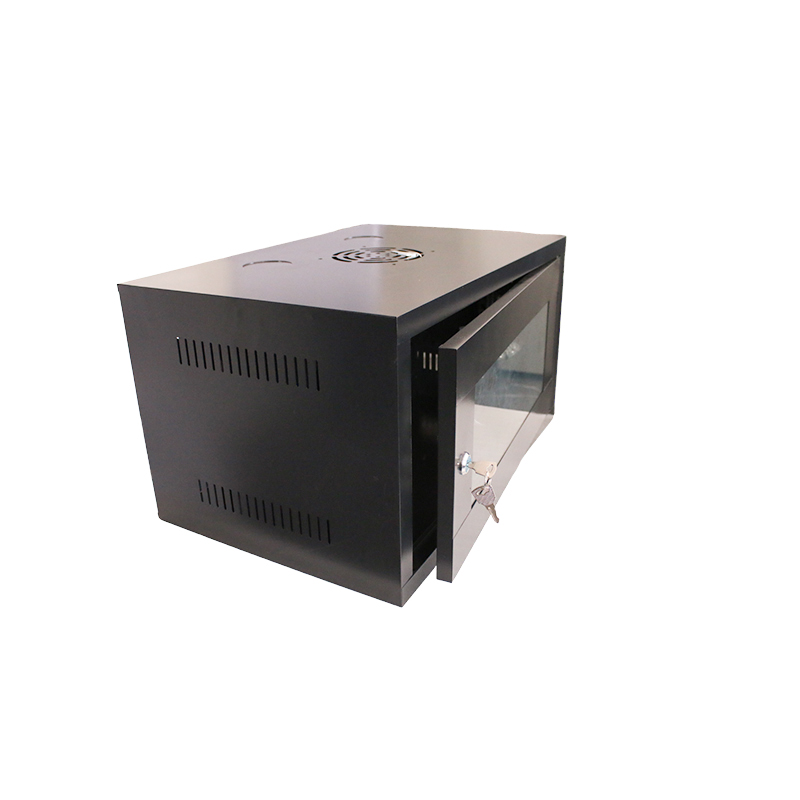

Wall Mount Cabinets (3)
5Wall Mount Cabinet
Rj45 Faceplate (4)
